Hands-on Exercise 4

Visual Statistical Analysis, Visualizing Uncertainty, Building Funnel Plot with R

Author

Prachi Ashani

Published

February 4, 2023

Modified

March 11, 2023

Visual Statistical Analysis

Getting Started

Installing and launching R packages

options(repos=c(cran="http://cran.rstudio.com"))
pacman::p_load(ggstatsplot, readxl, performance, parameters, see, FunnelPlotR, plotly, knitr, tidyverse)

Importing data

exam_data <- read_csv("data/Exam_data.csv")

One-sample test: gghistostats() method

In the code chunk below, gghistostats() is used to to build an visual of one-sample test on English scores.

set.seed(1234)

gghistostats(
  data = exam_data,
  x = ENGLISH,
  type = "bayes",
  test.value = 60,
  xlab = "English scores"
)

Unpacking the Bayes Factor

  • A Bayes factor is the ratio of the likelihood of one particular hypothesis to the likelihood of another. It can be interpreted as a measure of the strength of evidence in favor of one theory among two competing theories.

  • That’s because the Bayes factor gives us a way to evaluate the data in favor of a null hypothesis, and to use external information to do so. It tells us what the weight of the evidence is in favor of a given hypothesis.

  • When we are comparing two hypotheses, H1 (the alternate hypothesis) and H0 (the null hypothesis), the Bayes Factor is often written as B10. It can be defined mathematically as

  • The Schwarz criterion is one of the easiest ways to calculate rough approximation of the Bayes Factor.

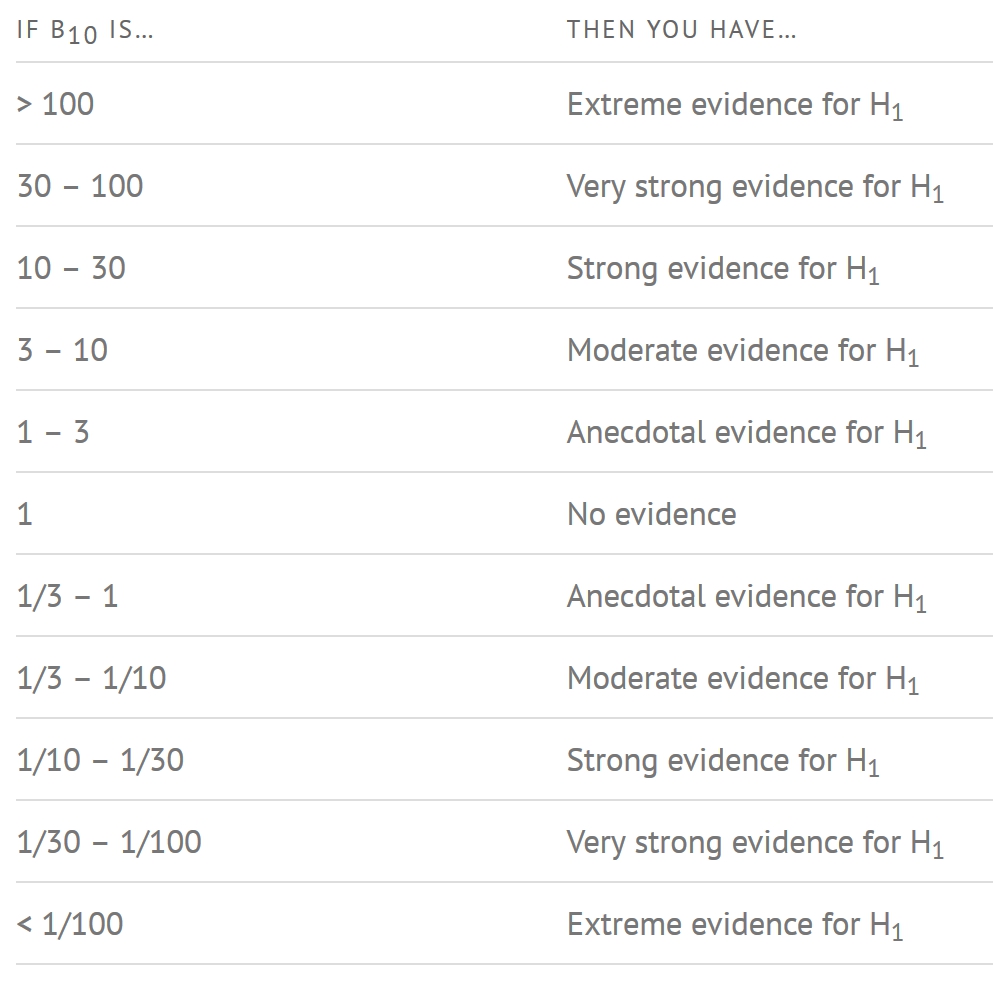

How to interpret Bayes Factor

A Bayes Factor can be any positive number. One of the most common interpretations is this one—first proposed by Harold Jeffereys (1961) and slightly modified by Lee and Wagenmakers in 2013:

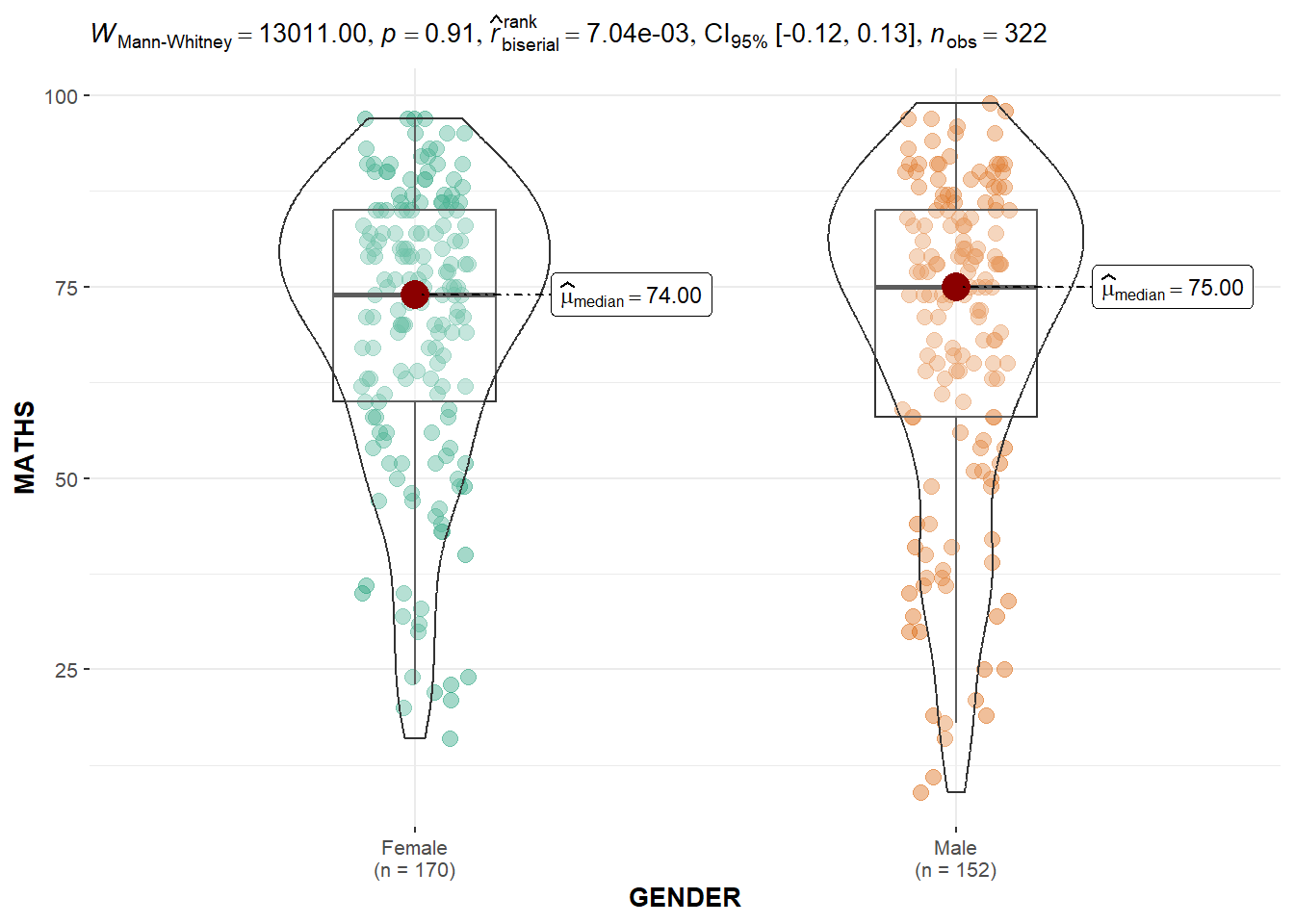

Two-sample mean test: ggbetweenstats()

In the code chunk below, ggbetweenstats() is used to build a visual for two-sample mean test of Maths scores by gender.

ggbetweenstats(
  data = exam_data,
  x = GENDER,
  y = MATHS,
  type = "np",
  messages = FALSE
)

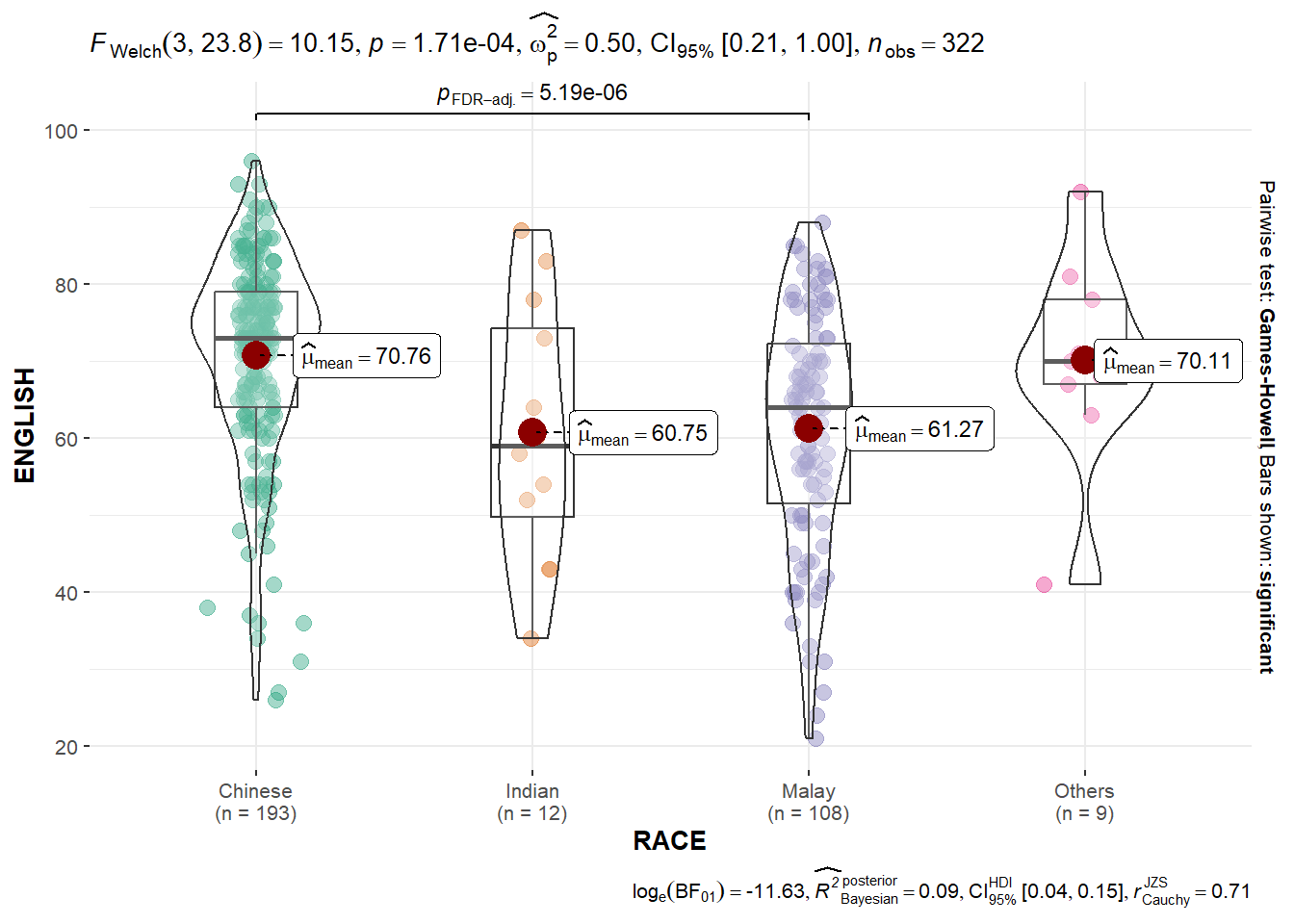

Oneway ANOVA Test: ggbetweenstats() method

In the code chunk below, ggbetweenstats() is used to build a visual for One-way ANOVA test on English score by race.

ggbetweenstats(
  data = exam_data,
  x = RACE,
  y = ENGLISH,
  type = "p",
  mean.ci = TRUE,
  pairwise.comparisons = TRUE,
  pairwise.display = "s",
  p.adjust.method = "fdr",
  messages = FALSE
)

  • “ns” → only non-significant

  • “s” → only significant

  • “all” → everything

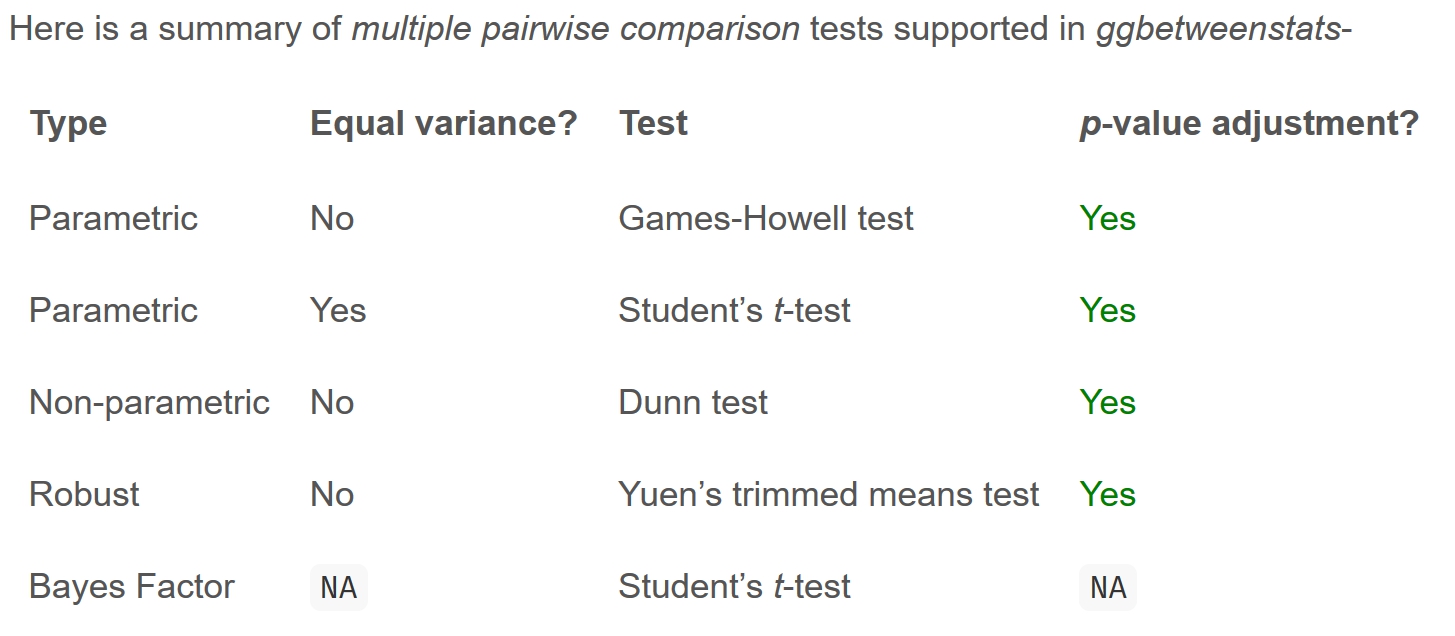

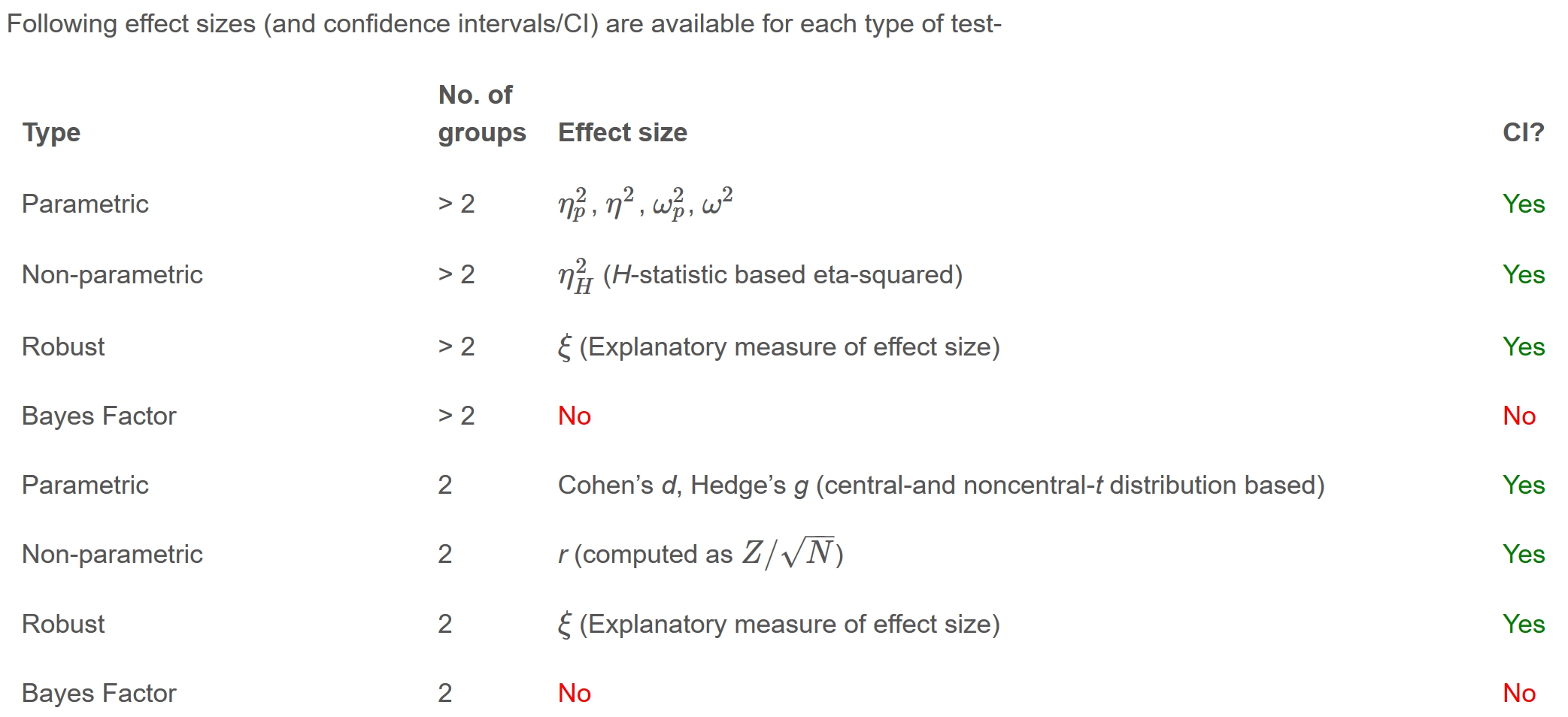

ggbetweenstats - Summary of tests

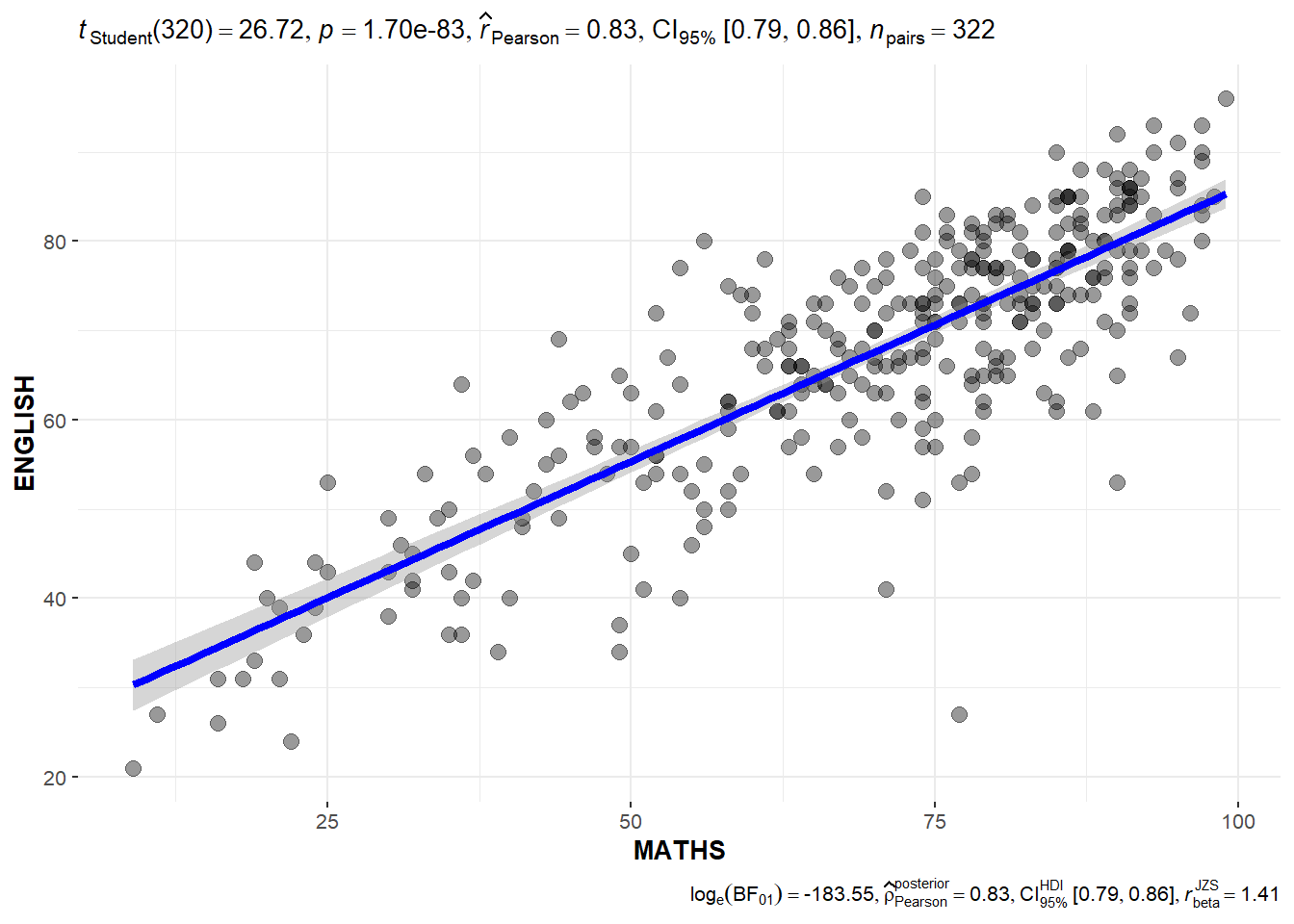

Significant Test of Correlation: ggscatterstats()

In the code chunk below, ggscatterstats() is used to build a visual for Significant Test of Correlation between Maths scores and English scores.

ggscatterstats(
  data = exam_data,
  x = MATHS,
  y = ENGLISH,
  marginal = FALSE,
  )

Significant Test of Association (Depedence) : ggbarstats() methods

In the code chunk below, the Maths scores is binned into a 4-class variable by using cut().

exam1 <- exam_data %>%
  mutate(MATHS_bins =
           cut(MATHS,
               breaks = c(0,60,75,85,100))
)

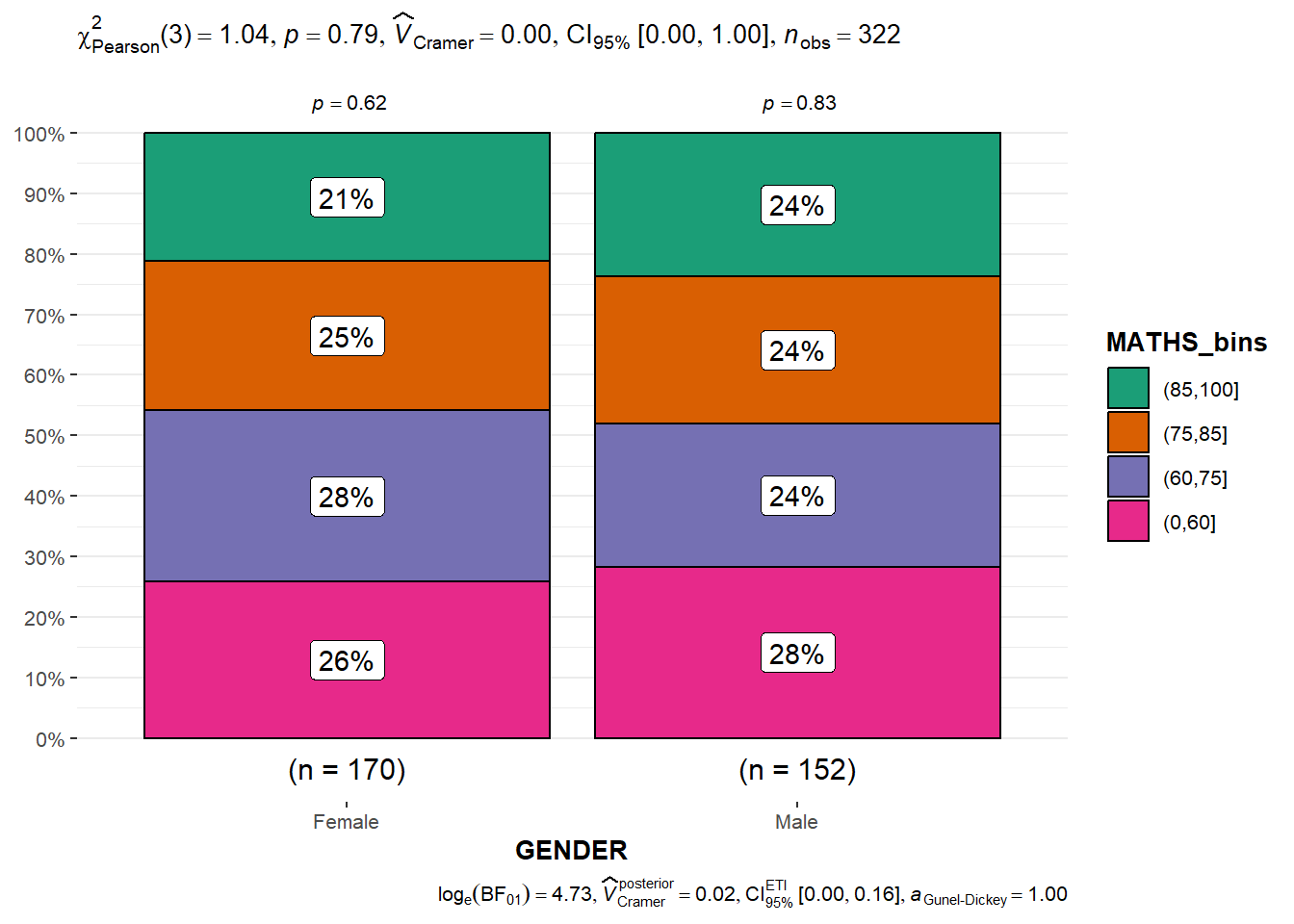

In this code chunk below ggbarstats() is used to build a visual for Significant Test of Association.

ggbarstats(exam1,
           x = MATHS_bins,
           y = GENDER)

Visualizing Models

Importing Excel file: readxl methods

In the code chunk below, read_xls() of readxl package is used to import the data worksheet of ToyotaCorolla.xls workbook into R.

car_resale <- read_xls("data/ToyotaCorolla.xls",
                       "data")
car_resale
# A tibble: 1,436 × 38
      Id Model       Price Age_0…¹ Mfg_M…² Mfg_Y…³     KM Quart…⁴ Weight Guara…⁵
   <dbl> <chr>       <dbl>   <dbl>   <dbl>   <dbl>  <dbl>   <dbl>  <dbl>   <dbl>
 1    81 TOYOTA Cor… 18950      25       8    2002  20019     100   1180       3
 2     1 TOYOTA Cor… 13500      23      10    2002  46986     210   1165       3
 3     2 TOYOTA Cor… 13750      23      10    2002  72937     210   1165       3
 4     3  TOYOTA Co… 13950      24       9    2002  41711     210   1165       3
 5     4 TOYOTA Cor… 14950      26       7    2002  48000     210   1165       3
 6     5 TOYOTA Cor… 13750      30       3    2002  38500     210   1170       3
 7     6 TOYOTA Cor… 12950      32       1    2002  61000     210   1170       3
 8     7  TOYOTA Co… 16900      27       6    2002  94612     210   1245       3
 9     8 TOYOTA Cor… 18600      30       3    2002  75889     210   1245       3
10    44 TOYOTA Cor… 16950      27       6    2002 110404     234   1255       3
# … with 1,426 more rows, 28 more variables: HP_Bin <chr>, CC_bin <chr>,
#   Doors <dbl>, Gears <dbl>, Cylinders <dbl>, Fuel_Type <chr>, Color <chr>,
#   Met_Color <dbl>, Automatic <dbl>, Mfr_Guarantee <dbl>,
#   BOVAG_Guarantee <dbl>, ABS <dbl>, Airbag_1 <dbl>, Airbag_2 <dbl>,
#   Airco <dbl>, Automatic_airco <dbl>, Boardcomputer <dbl>, CD_Player <dbl>,
#   Central_Lock <dbl>, Powered_Windows <dbl>, Power_Steering <dbl>,
#   Radio <dbl>, Mistlamps <dbl>, Sport_Model <dbl>, Backseat_Divider <dbl>, …

Multiple Regression Model using lm()

model <- lm(Price ~ Age_08_04 + Mfg_Year + KM +
              Weight + Guarantee_Period, data = car_resale)
model

Call:
lm(formula = Price ~ Age_08_04 + Mfg_Year + KM + Weight + Guarantee_Period,
    data = car_resale)

Coefficients:
     (Intercept)         Age_08_04          Mfg_Year                KM
      -2.637e+06        -1.409e+01         1.315e+03        -2.323e-02
          Weight  Guarantee_Period
       1.903e+01         2.770e+01

Model Diagnostic: checking for multicolinearity

In the code chunk, check_collinearity() of performance package.

check_collinearity(model)
# Check for Multicollinearity

Low Correlation

             Term   VIF     VIF 95% CI Increased SE Tolerance Tolerance 95% CI
 Guarantee_Period  1.04   [1.01, 1.17]         1.02      0.97     [0.86, 0.99]
        Age_08_04 31.07 [28.08, 34.38]         5.57      0.03     [0.03, 0.04]
         Mfg_Year 31.16 [28.16, 34.48]         5.58      0.03     [0.03, 0.04]

High Correlation

   Term  VIF   VIF 95% CI Increased SE Tolerance Tolerance 95% CI
     KM 1.46 [1.37, 1.57]         1.21      0.68     [0.64, 0.73]
 Weight 1.41 [1.32, 1.51]         1.19      0.71     [0.66, 0.76]

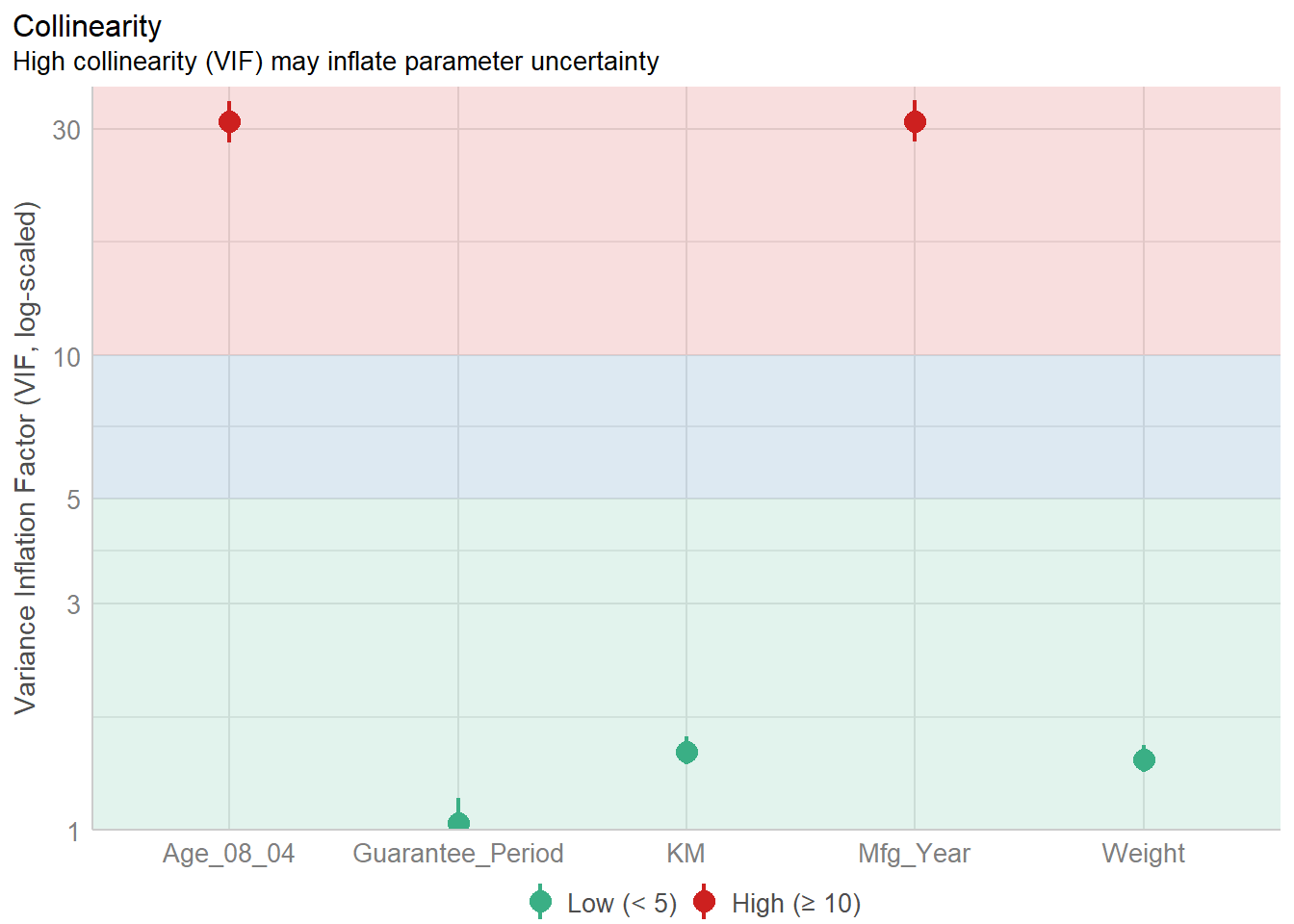

check_c <- check_collinearity(model)
plot(check_c)

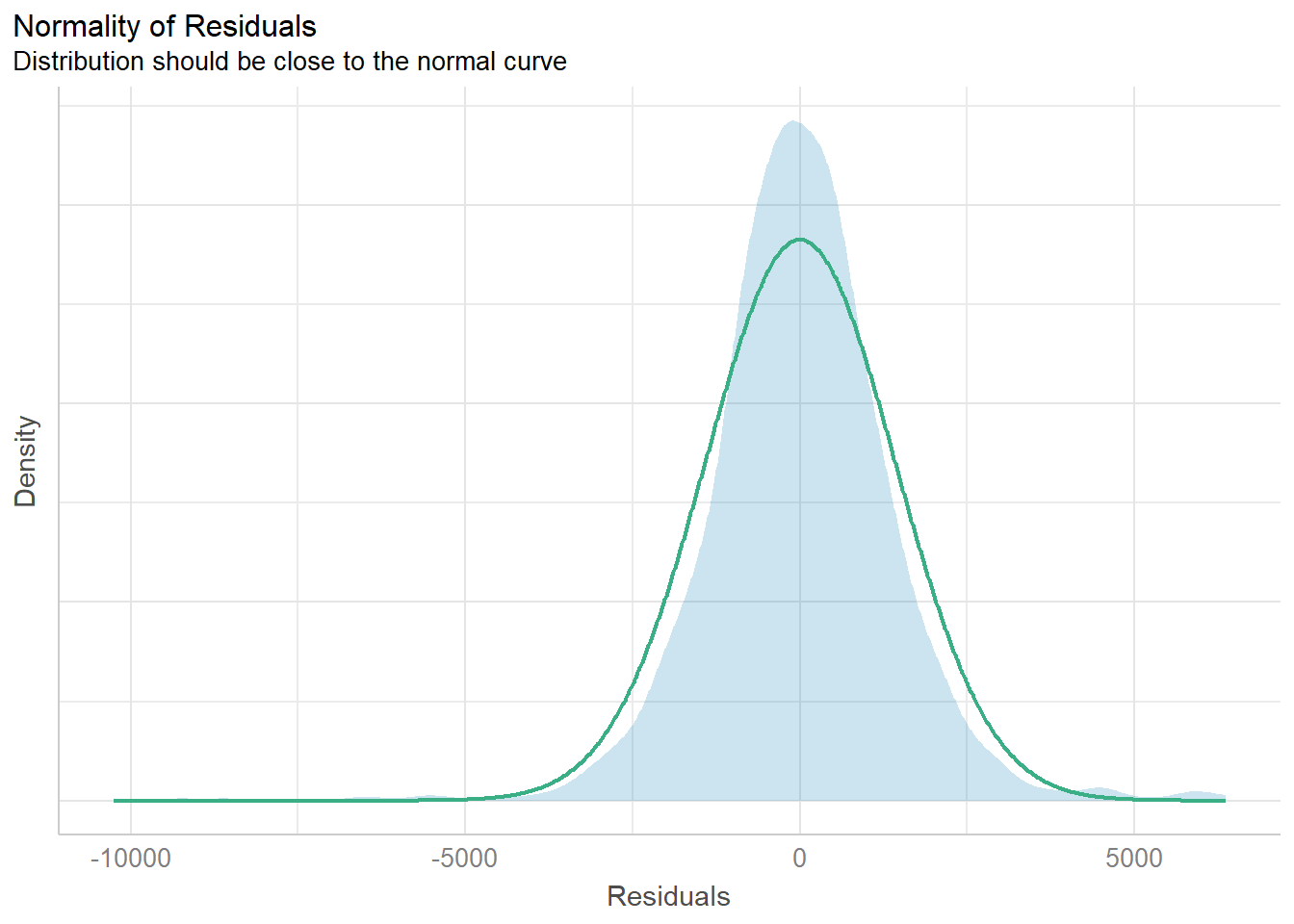

Model Diagnostic: checking normality assumption

In the code chunk, check_normality() of performance package.

model1 <- lm(Price ~ Age_08_04 + KM +
              Weight + Guarantee_Period, data = car_resale)

check_n <- check_normality(model1)

plot(check_n)

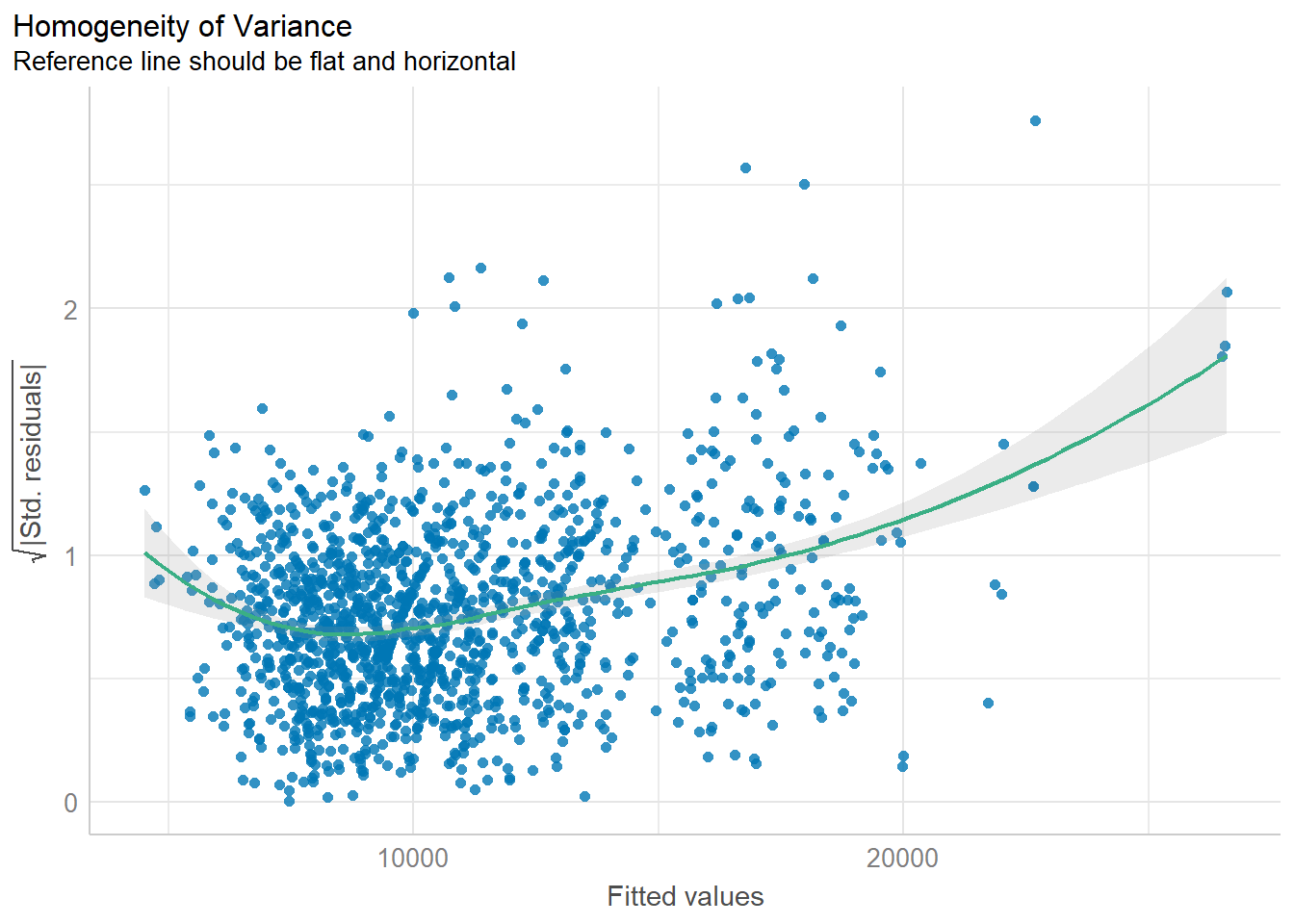

Model Diagnostic: Check model for homogeneity of variances

In the code chunk, check_heteroscedasticity() of performance package.

check_h <- check_heteroscedasticity(model1)
plot(check_h)

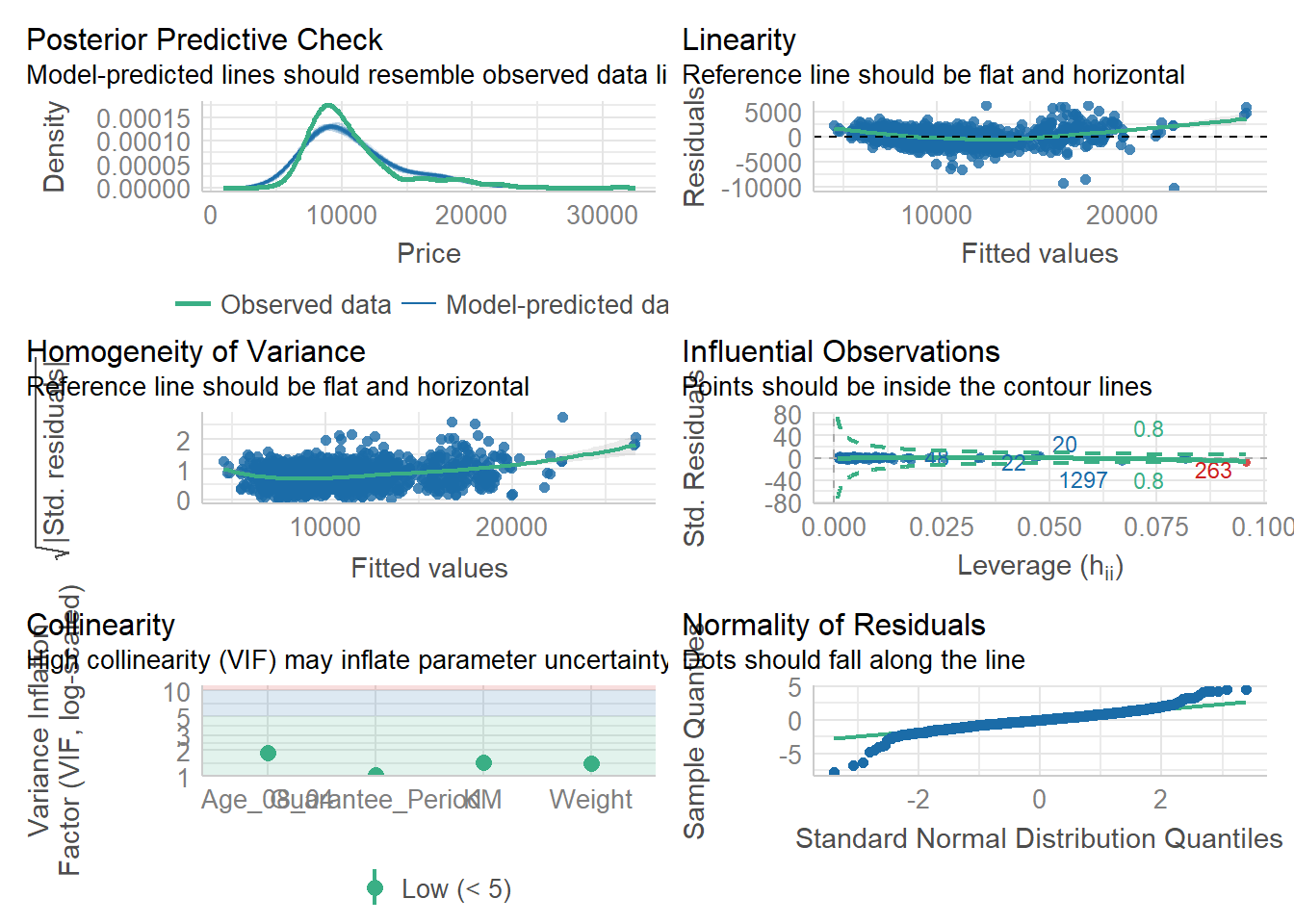

Model Diagnostic: Complete check

We can also perform the complete by using check_model().

check_model(model1)

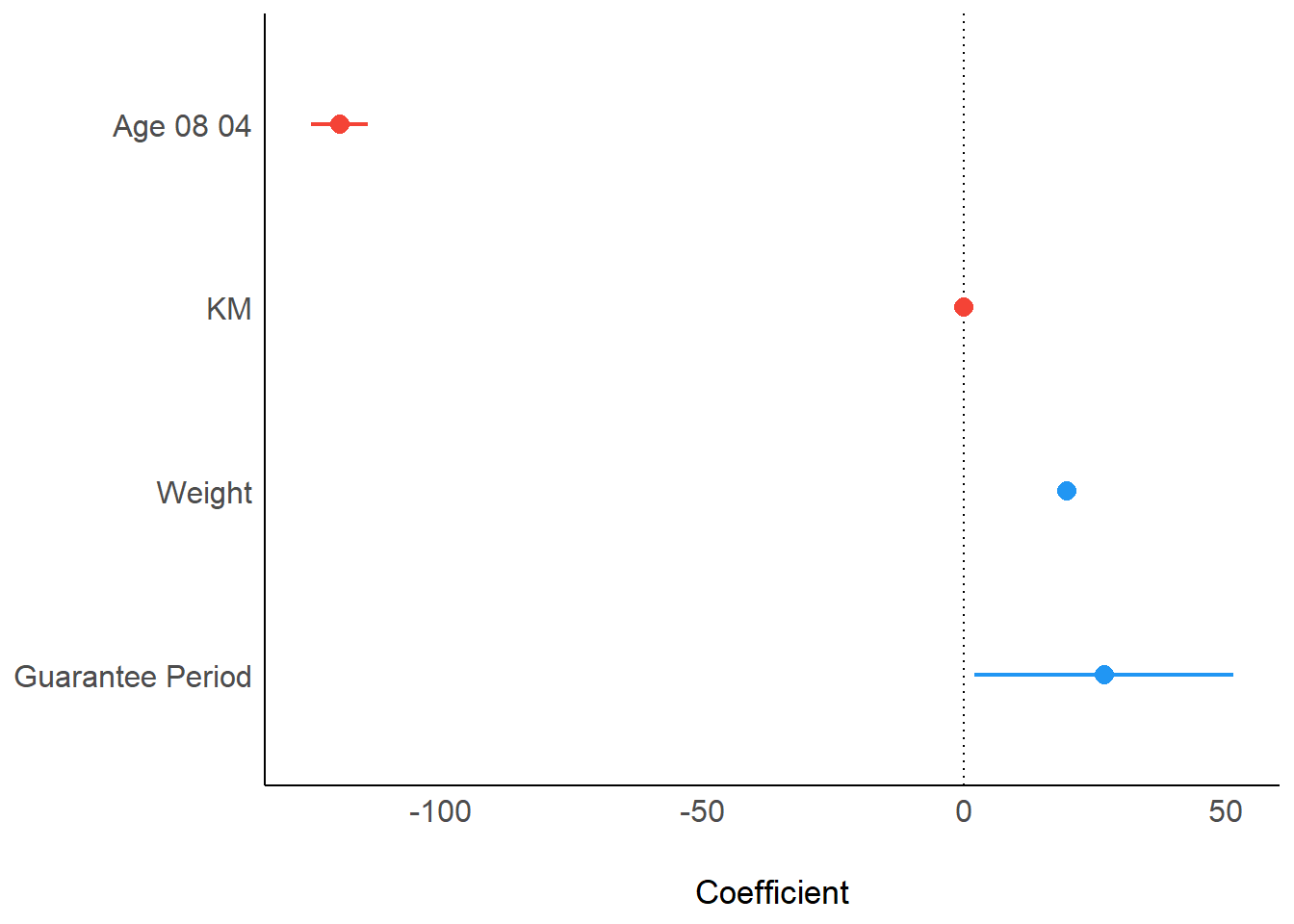

Visualizing Regression Parameters: see methods

In the code below, plot() of see package and parameters() of parameters package is used to visualise the parameters of a regression model.

plot(parameters(model1))

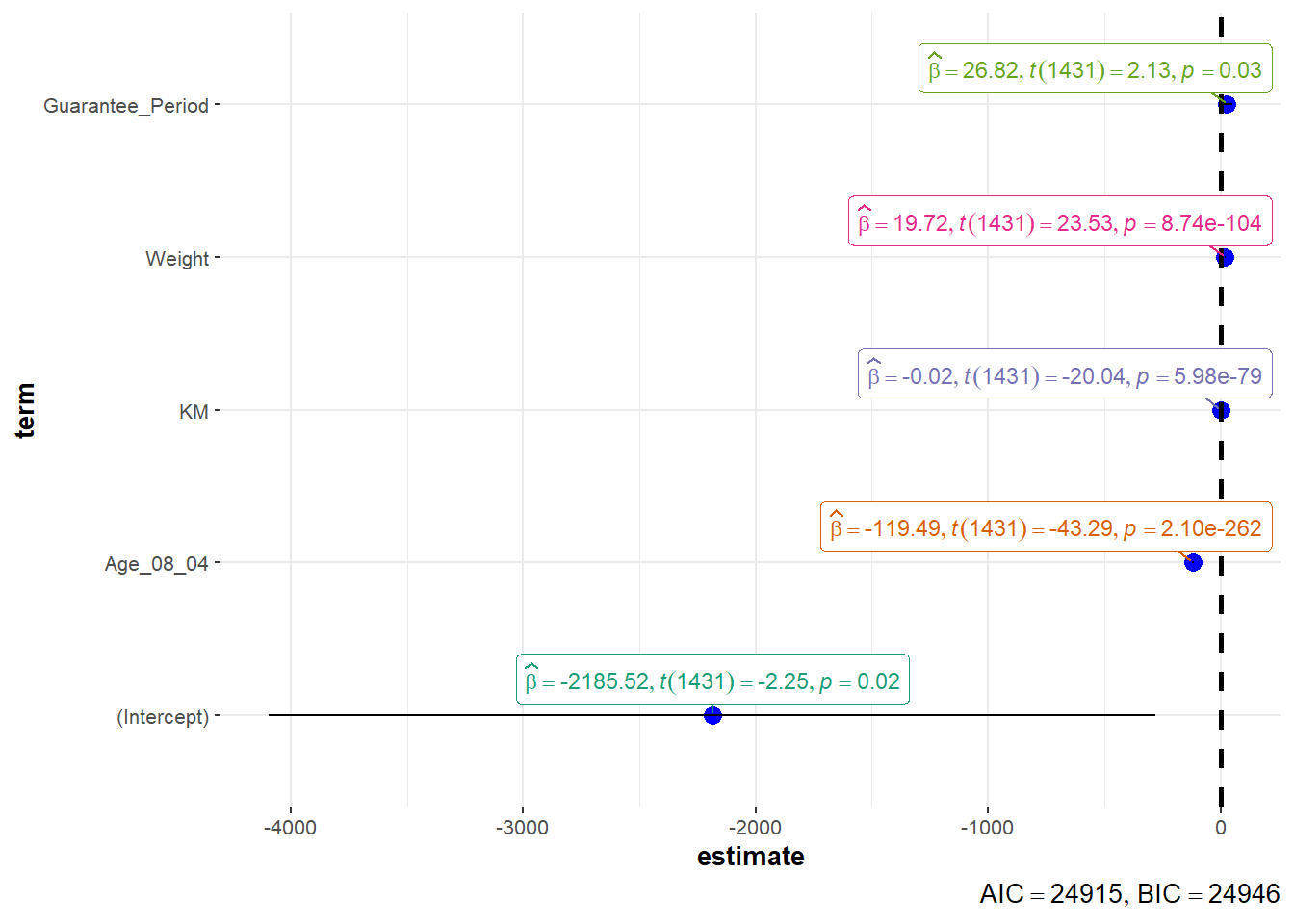

Visualizing Regression Parameters: ggcoefstats() methods

In the code below, ggcoefstats() of ggstatsplot package to visualise the parameters of a regression model.

ggcoefstats(model1,
            output = "plot")

Visualizing Uncertainty

Visualizing the uncertainty of point estimates

  • A point estimate is a single number, such as a mean.

  • Uncertainty is expressed as standard error, confidence interval, or credible interval

pacman::p_load(tidyverse, plotly, crosstalk, DT, ggdist, gganimate)
exam <- read_csv("data/Exam_data.csv")

Visualizing the uncertainty of point estimates: ggplot2 methods

The code chunk below performs the followings:

  • group the observation by RACE,

  • computes the count of observations, mean, standard deviation and standard error of Maths by RACE, and

  • save the output as a tibble data table called my_sum.

my_sum <- exam %>%
  group_by(RACE) %>%
  summarise(
    n=n(),
    mean=mean(MATHS),
    sd=sd(MATHS)
    ) %>%
  mutate(se=sd/sqrt(n-1))
knitr::kable(head(my_sum), format = 'html')
RACE n mean sd se
Chinese 193 76.50777 15.69040 1.132357
Indian 12 60.66667 23.35237 7.041005
Malay 108 57.44444 21.13478 2.043177
Others 9 69.66667 10.72381 3.791438

Visualizing the uncertainty of point estimates: ggplot2 methods

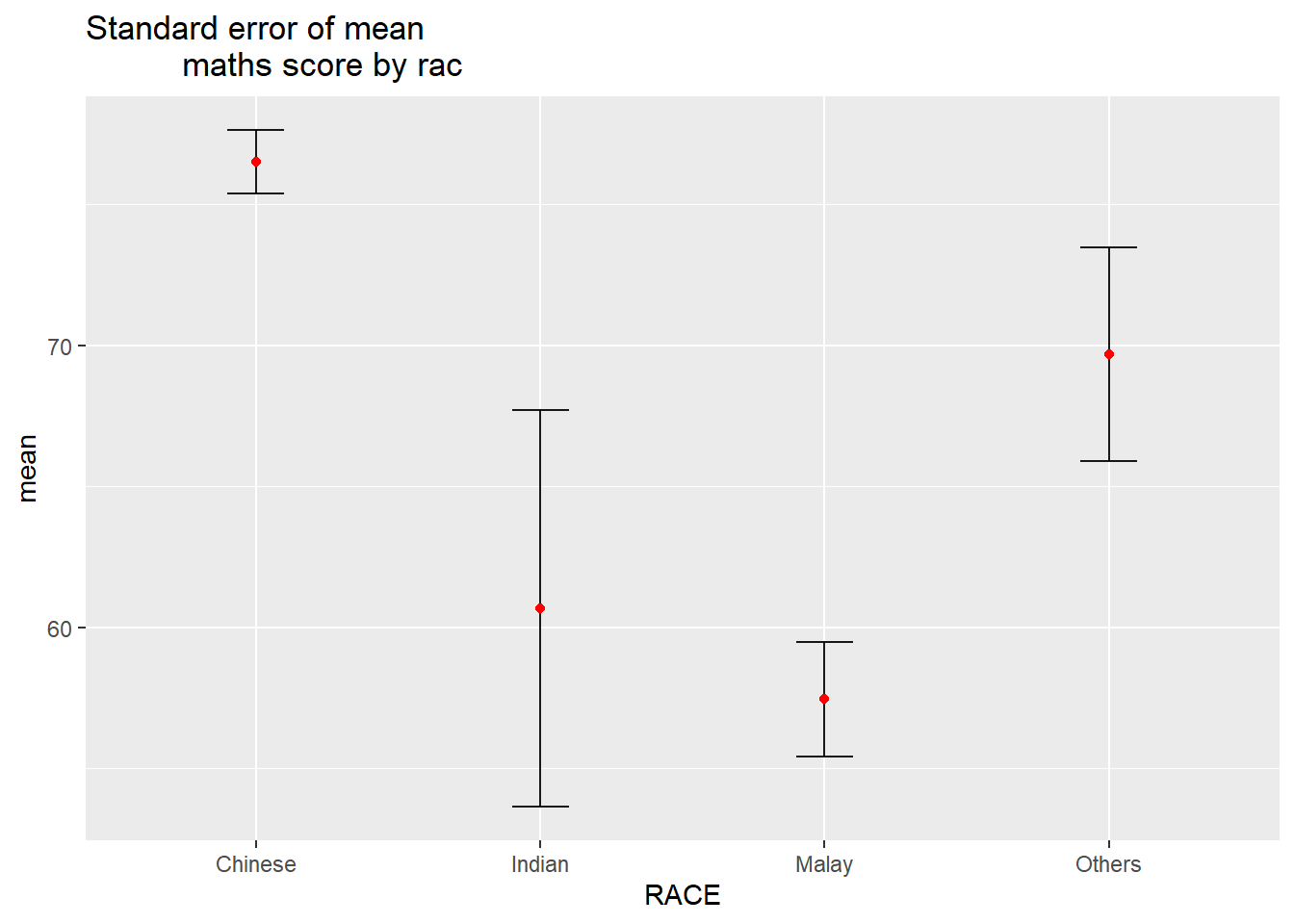

The code chunk below is used to reveal the standard error of mean maths score by race.

ggplot(my_sum) +
  geom_errorbar(
    aes(x=RACE,
        ymin=mean-se,
        ymax=mean+se),
    width=0.2,
    colour="black",
    alpha=0.9,
    size=0.5) +
  geom_point(aes
           (x=RACE,
            y=mean),
           stat="identity",
           color="red",
           size = 1.5,
           alpha=1) +
  ggtitle("Standard error of mean
          maths score by rac")

Visualizing the uncertainty of point estimates with interactive error bars

<insert code chunk>

Visualizing Uncertainty: ggdist package

  • ggdist is an R package that provides a flexible set of ggplot2 geoms and stats designed especially for visualising distributions and uncertainty.

  • It is designed for both frequentist and Bayesian uncertainty visualization, taking the view that uncertainty visualization can be unified through the perspective of distribution visualization:

    • for frequentist models, one visualises confidence distributions or bootstrap distributions (see vignette(“freq-uncertainty-vis”));

    • for Bayesian models, one visualises probability distributions (see the tidybayes package, which builds on top of ggdist).

Visualizing the uncertainty of point estimates: ggdist methods

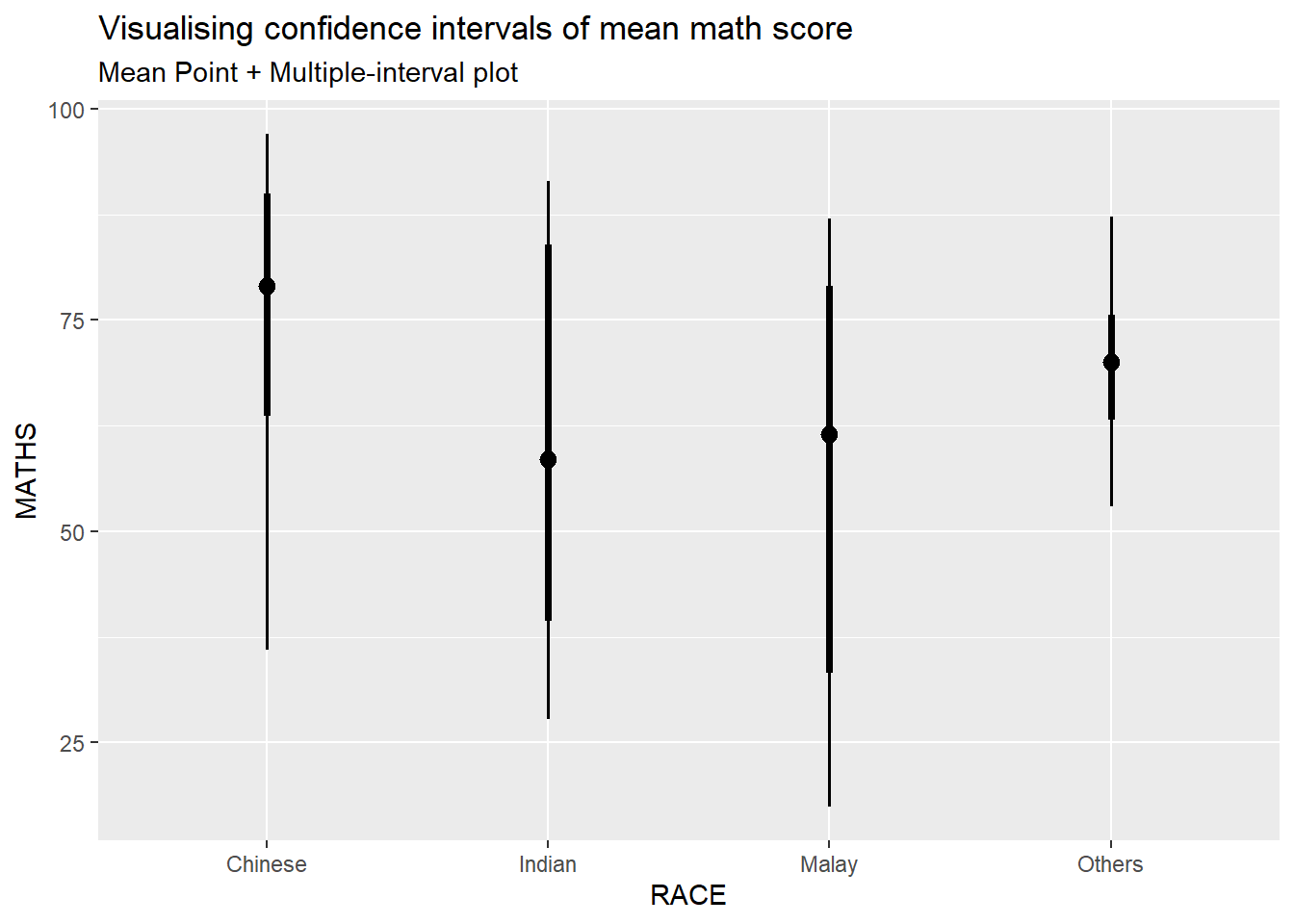

In the code chunk below, stat_pointinterval() of ggdist is used to build a visual for displaying distribution of maths scores by race.

exam %>%
  ggplot(aes(x = RACE,
             y = MATHS)) +
  stat_pointinterval() +   #<<
  labs(
    title = "Visualising confidence intervals of mean math score",
    subtitle = "Mean Point + Multiple-interval plot")

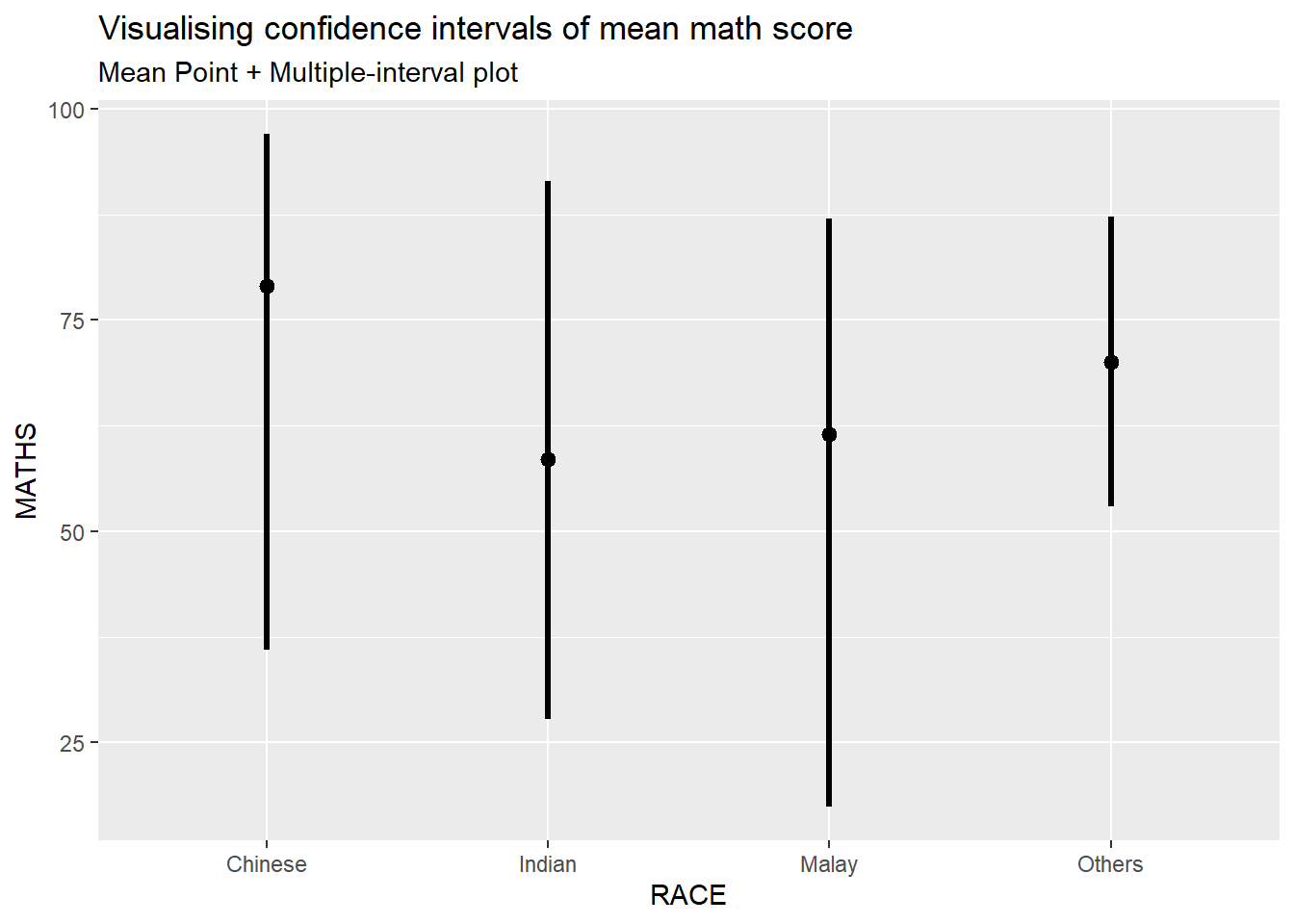

exam %>%
  ggplot(aes(x = RACE, y = MATHS)) +
  stat_pointinterval(.width = 0.95,
  .point = median,
  .interval = qi) +
  labs(
    title = "Visualising confidence intervals of mean math score",
    subtitle = "Mean Point + Multiple-interval plot")

exam %>%
  ggplot(aes(x = RACE,
             y = MATHS)) +
  stat_pointinterval(
    show.legend = FALSE) +
  labs(
    title = "Visualising confidence intervals of mean math score",
    subtitle = "Mean Point + Multiple-interval plot")

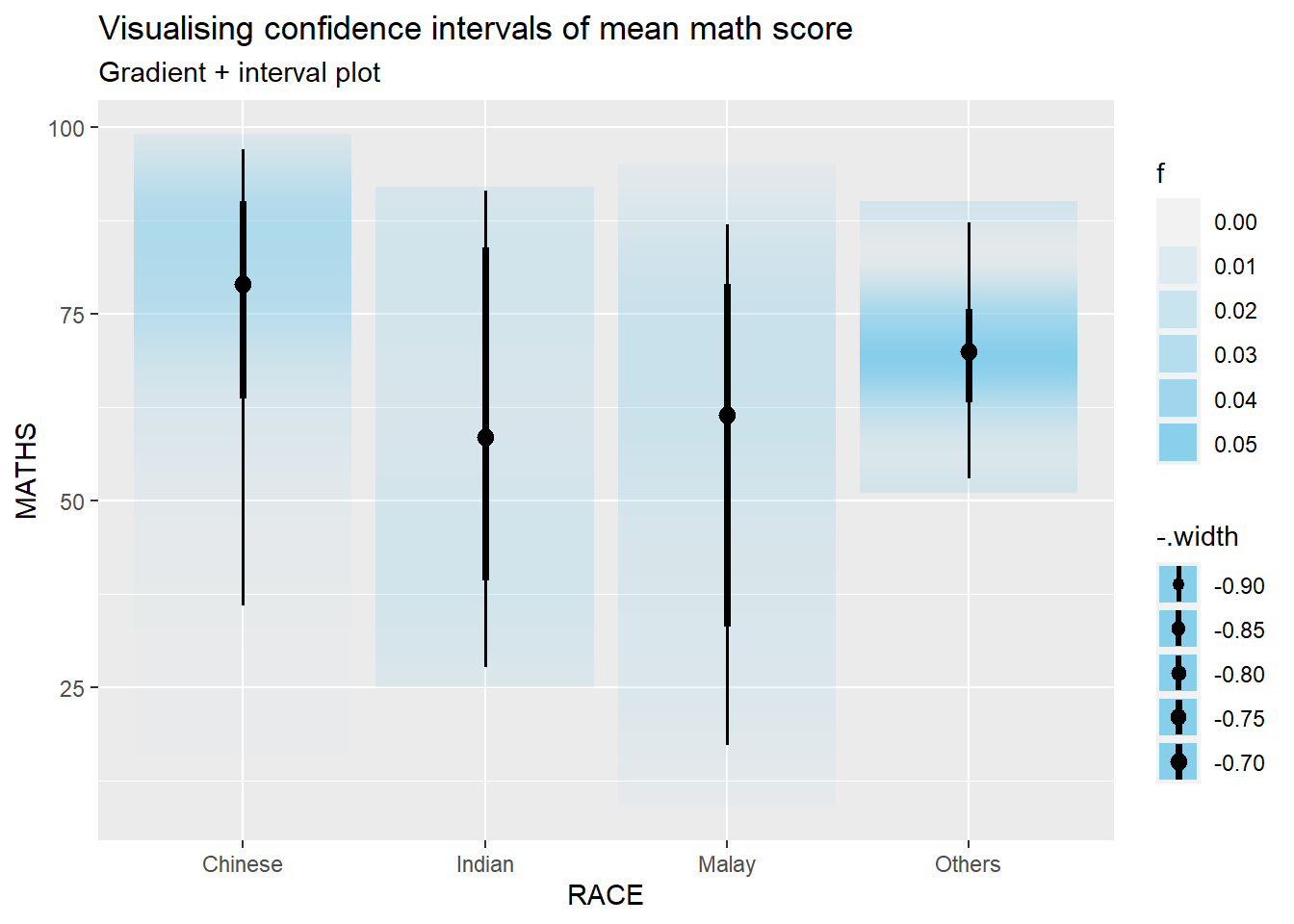

In the code chunk below, stat_gradientinterval() of ggdist is used to build a visual for displaying distribution of maths scores by race.

exam %>%
  ggplot(aes(x = RACE,
             y = MATHS)) +
  stat_gradientinterval(
    fill = "skyblue",
    show.legend = TRUE
  ) +
  labs(
    title = "Visualising confidence intervals of mean math score",
    subtitle = "Gradient + interval plot")

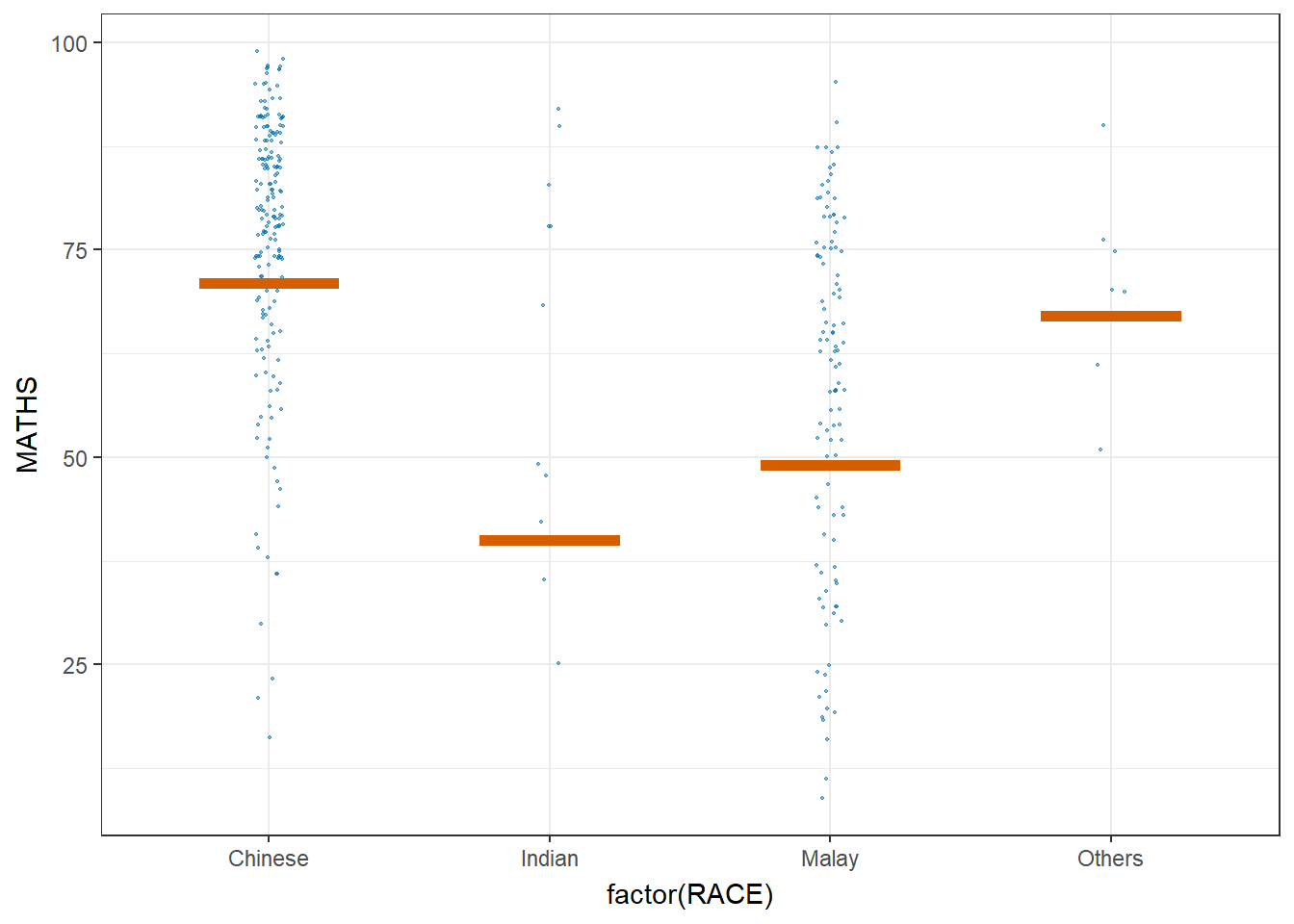

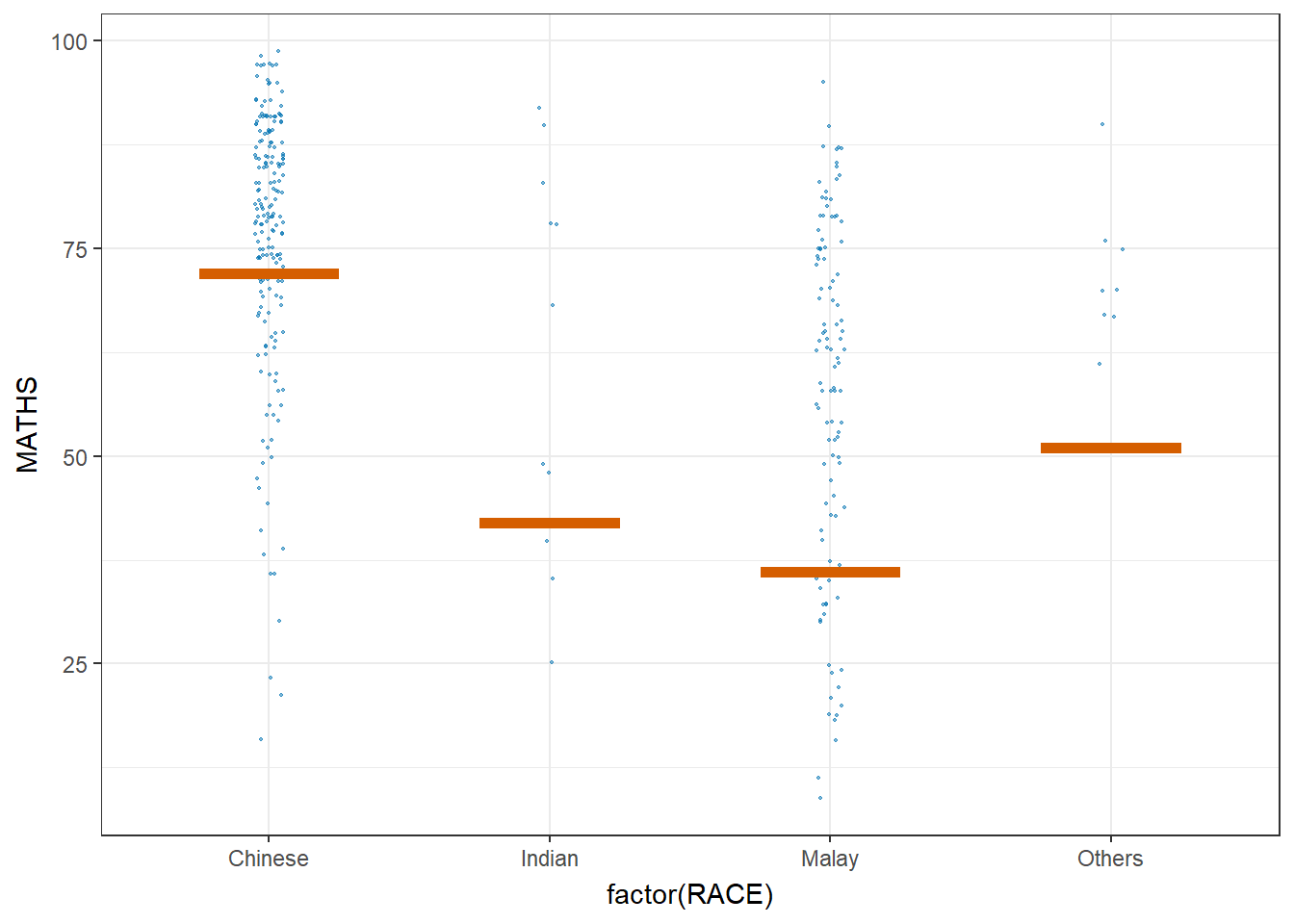

Visualizing Uncertainty with Hypothetical Outcome Plots (HOPs)

Step 1: Installing ungeviz package

devtools::install_github("wilkelab/ungeviz")

Step 2: Launch the application in R

library(ungeviz)
ggplot(data = exam,
       (aes(x = factor(RACE), y = MATHS))) +
  geom_point(position = position_jitter(
    height = 0.3, width = 0.05),
    size = 0.4, color = "#0072B2", alpha = 1/2) +
  geom_hpline(data = sampler(25, group = RACE), height = 0.6, color = "#D55E00") +
  theme_bw() +
  # `.draw` is a generated column indicating the sample draw
  transition_states(.draw, 1, 3)

ggplot(data = exam,
       (aes(x = factor(RACE),
            y = MATHS))) +
  geom_point(position = position_jitter(
    height = 0.3,
    width = 0.05),
    size = 0.4,
    color = "#0072B2",
    alpha = 1/2) +
  geom_hpline(data = sampler(25,
                             group = RACE),
              height = 0.6,
              color = "#D55E00") +
  theme_bw() +
  transition_states(.draw, 1, 3)

Building Funnel Plot

Funnel plot is a specially designed data visualisation for conducting unbiased comparison between outlets, stores or business entities. Through this exercise, we:

  • plot funnel plots by using funnelPlotR package,

  • plott static funnel plot by using ggplot2 package, and

  • plot interactive funnel plot by using both plotly R and ggplot2 packages

Importing Data

covid19 <- read_csv("data/COVID-19_DKI_Jakarta.csv") %>%
  mutate_if(is.character, as.factor)

FunnelPlotR methods

FunnelPlotR package uses ggplot to generate funnel plots. It requires a numerator (events of interest), denominator (population to be considered) and group. The key arguments selected for customisation are:

  • limit: plot limits (95 or 99).

  • label_outliers: to label outliers (true or false).

  • Poisson_limits: to add Poisson limits to the plot.

  • OD_adjust: to add overdispersed limits to the plot.

  • xrange and yrange: to specify the range to display for axes, acts like a zoom function.

  • Other aesthetic components such as graph title, axis labels etc.

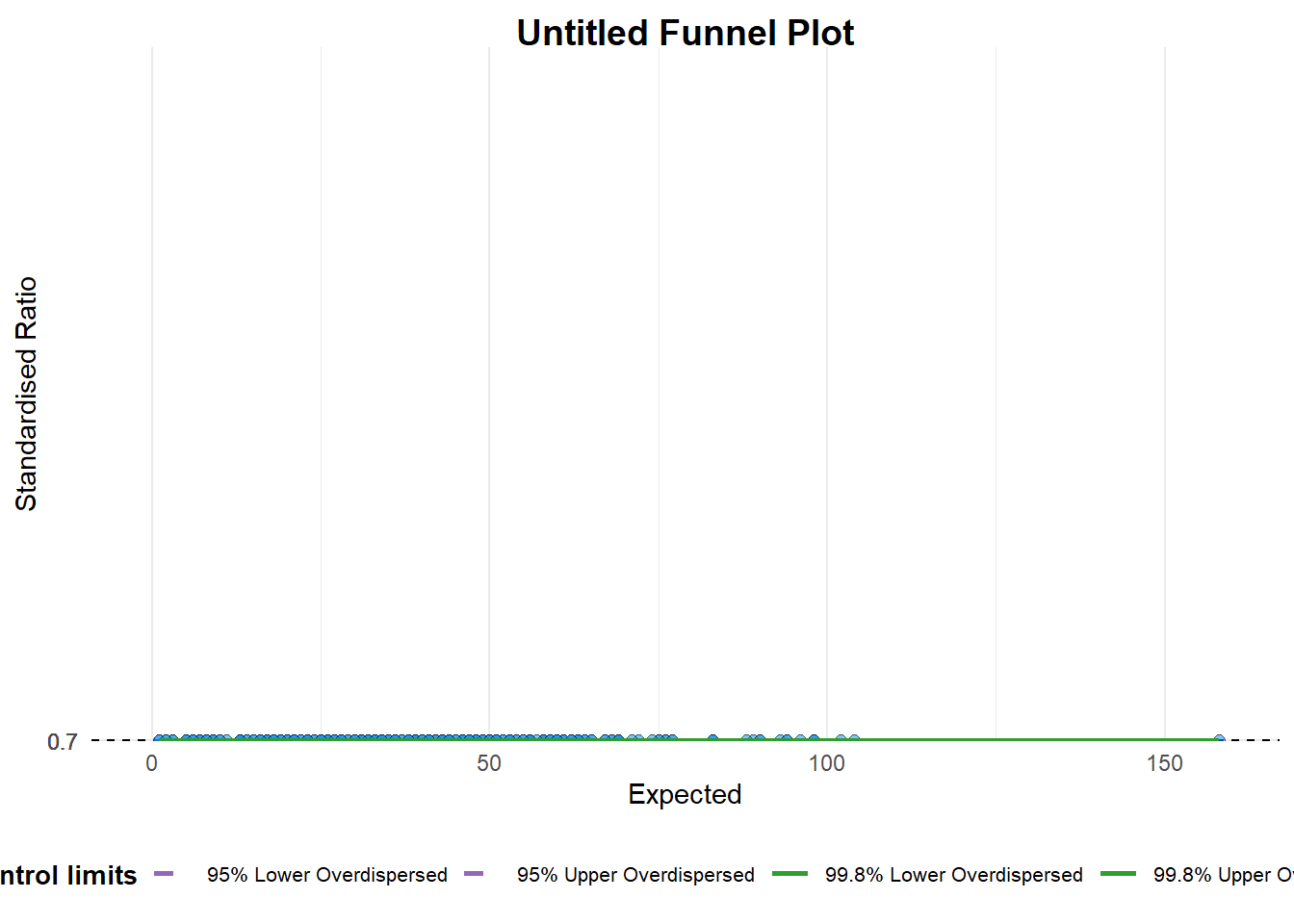

FunnelPlotR methods: The basic plot

The code chunk below plots a funnel plot.

funnel_plot(
  numerator = covid19$Positive,
  denominator = covid19$Death,
  group = covid19$`Sub-district`
)

A funnel plot object with 267 points of which 0 are outliers.
Plot is adjusted for overdispersion.

  • group in this function is different from the scatterplot. Here, it defines the level of the points to be plotted i.e. Sub-district, District or City. If Cityc is chosen, there are only six data points.

  • By default, data_typeargument is “SR”.

  • limit: Plot limits, accepted values are: 95 or 99, corresponding to 95% or 99.8% quantiles of the distribution.

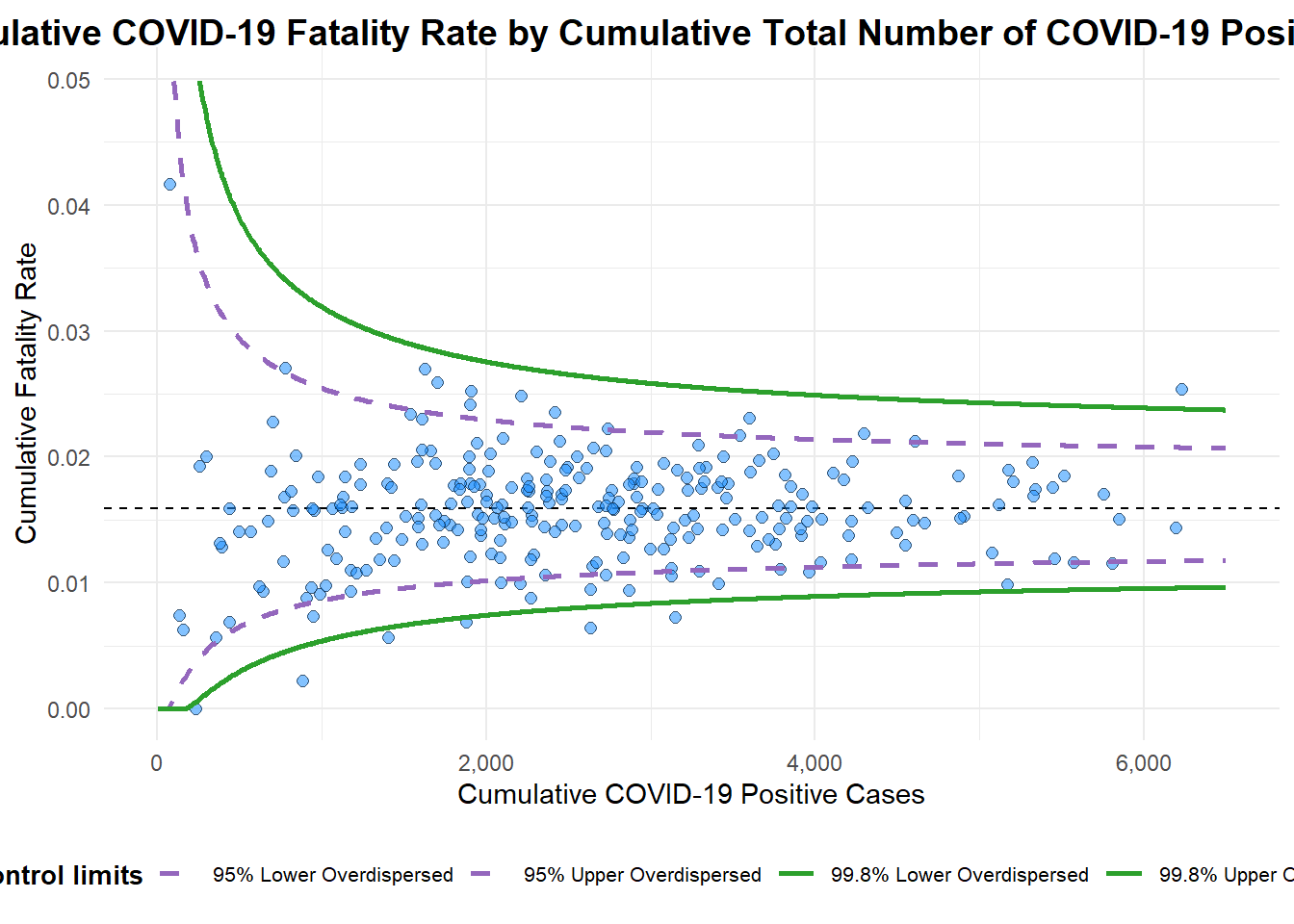

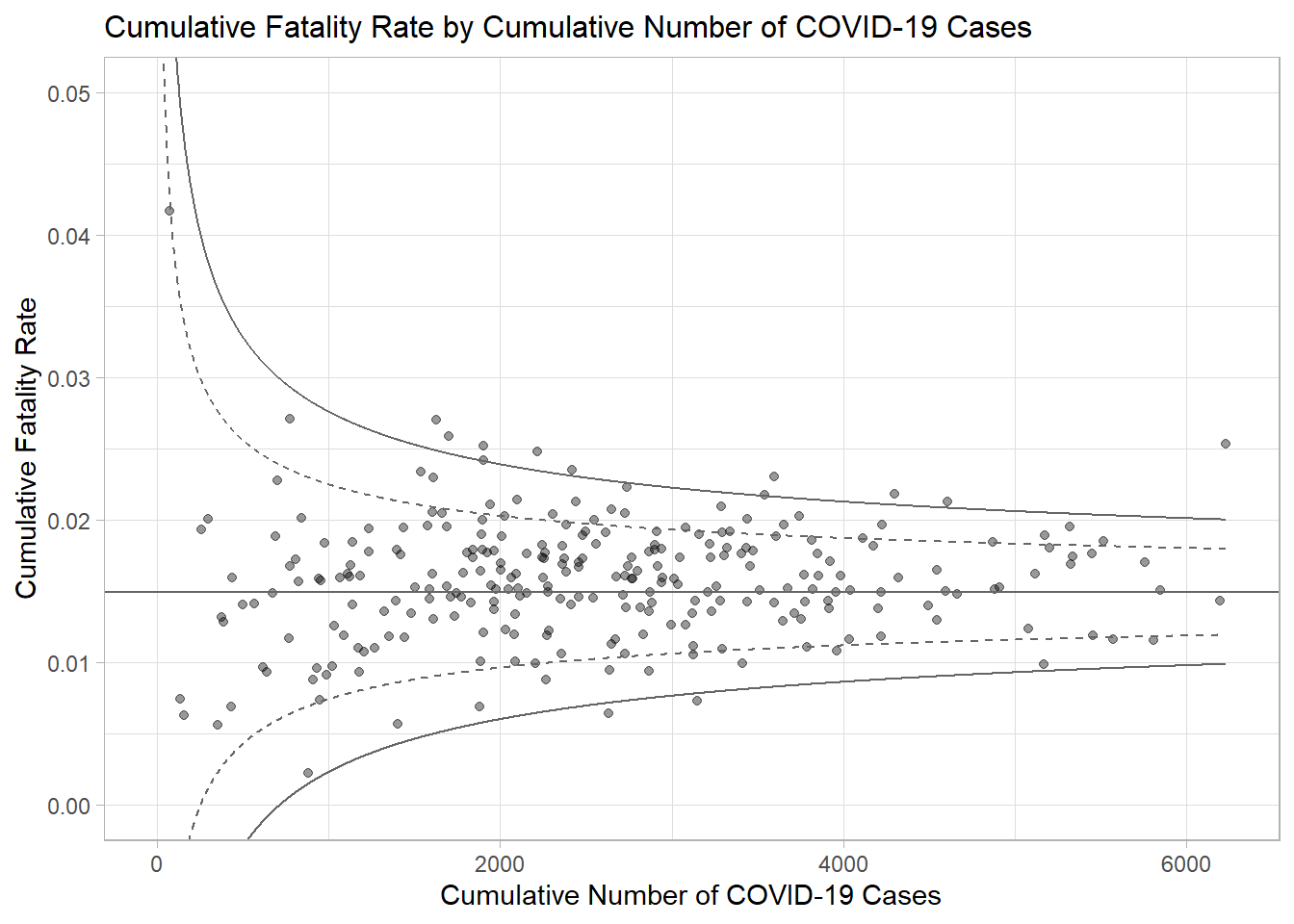

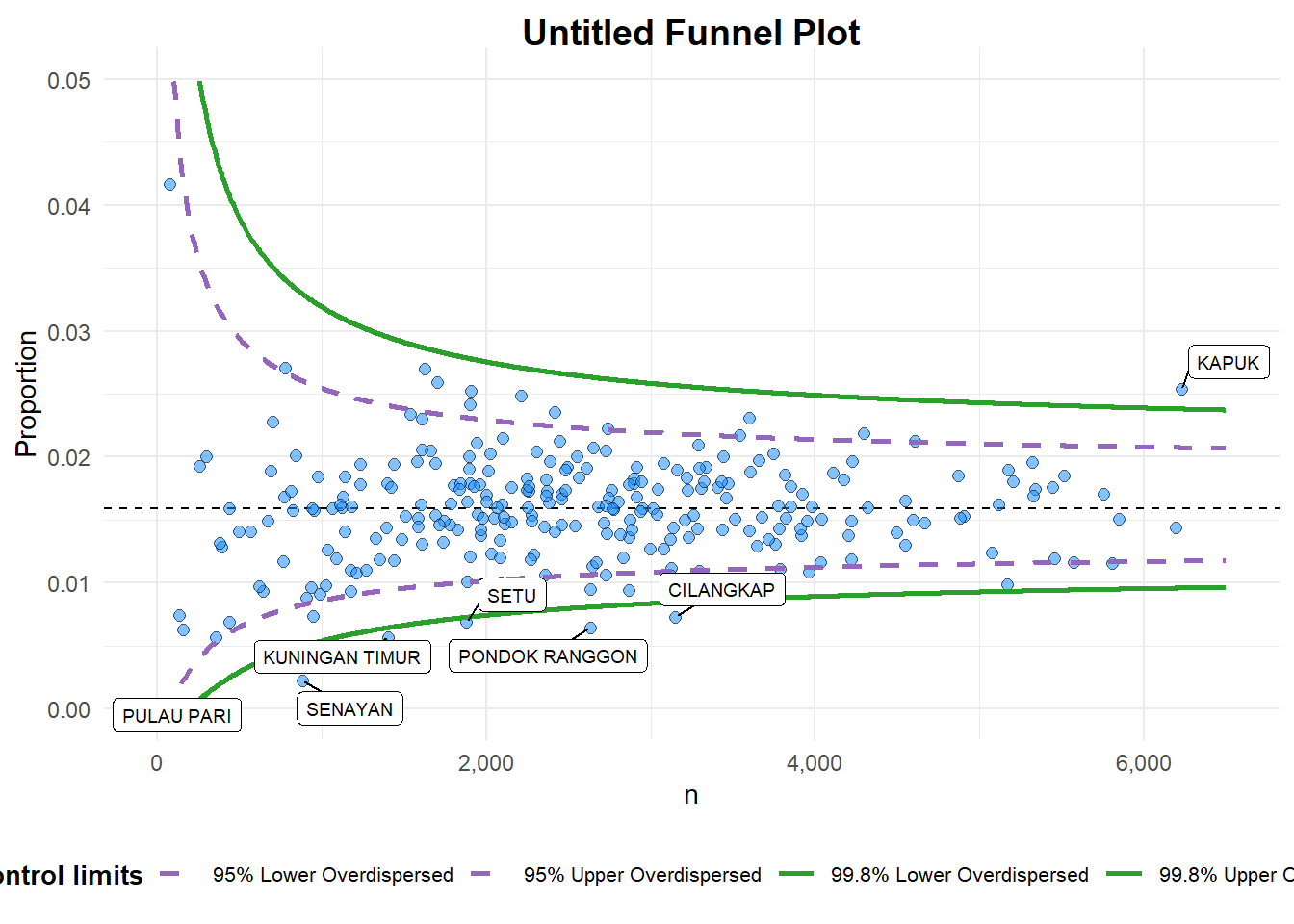

FunnelPlotR methods: Makeover 1

The code chunk below plots a funnel plot.

funnel_plot(
  numerator = covid19$Death,
  denominator = covid19$Positive,
  group = covid19$`Sub-district`,
  data_type = "PR",     #<<
  xrange = c(0, 6500),  #<<
  yrange = c(0, 0.05)   #<<
)

A funnel plot object with 267 points of which 7 are outliers.
Plot is adjusted for overdispersion.

+ data_type argument is used to change from default “SR” to “PR” (i.e. proportions). + xrange and yrange are used to set the range of x-axis and y-axis

FunnelPlotR methods: Makeover 2

The code chunk below plots a funnel plot.

funnel_plot(
  numerator = covid19$Death,
  denominator = covid19$Positive,
  group = covid19$`Sub-district`,
  data_type = "PR",
  xrange = c(0, 6500),
  yrange = c(0, 0.05),
  label = NA,
  title = "Cumulative COVID-19 Fatality Rate by Cumulative Total Number of COVID-19 Positive Cases", #<<
  x_label = "Cumulative COVID-19 Positive Cases", #<<
  y_label = "Cumulative Fatality Rate"  #<<
)

A funnel plot object with 267 points of which 7 are outliers.
Plot is adjusted for overdispersion.

  • label = NA argument is to removed the default label outliers feature.

  • title argument is used to add plot title.

  • x_label and y_label arguments are used to add/edit x-axis and y-axis titles.

Funnel Plot for Fair Visual Comparison: ggplot2 methods

We aim to enhance the working experience of ggplot2 and customize speciallised data visualization like funnel plot.

Computing the basic derived fields

We need to derive cumulative death rate and standard error of cumulative death rate.

df <- covid19 %>%
  mutate(rate = Death / Positive) %>%
  mutate(rate.se = sqrt((rate*(1-rate)) / (Positive))) %>%
  filter(rate > 0)

Next, the fit.mean is computed by using the code chunk below.

fit.mean <- weighted.mean(df$rate, 1/df$rate.se^2)

Calculate lower and upper limits for 95% and 99.9% CI

The code chunk below is used to compute the lower and upper limits for 95% confidence interval.

number.seq <- seq(1, max(df$Positive), 1)
number.ll95 <- fit.mean - 1.96 * sqrt((fit.mean*(1-fit.mean)) / (number.seq))
number.ul95 <- fit.mean + 1.96 * sqrt((fit.mean*(1-fit.mean)) / (number.seq))
number.ll999 <- fit.mean - 3.29 * sqrt((fit.mean*(1-fit.mean)) / (number.seq))
number.ul999 <- fit.mean + 3.29 * sqrt((fit.mean*(1-fit.mean)) / (number.seq))
dfCI <- data.frame(number.ll95, number.ul95, number.ll999, number.ul999, number.seq, fit.mean)

Plotting a static funnel plot

In the code chunk below, ggplot2 functions are used to plot a static funnel plot.

p <- ggplot(df, aes(x = Positive, y = rate)) +
  geom_point(aes(label=`Sub-district`),
             alpha=0.4) +
  geom_line(data = dfCI,
            aes(x = number.seq,
                y = number.ll95),
            size = 0.4,
            colour = "grey40",
            linetype = "dashed") +
  geom_line(data = dfCI,
            aes(x = number.seq,
                y = number.ul95),
            size = 0.4,
            colour = "grey40",
            linetype = "dashed") +
  geom_line(data = dfCI,
            aes(x = number.seq,
                y = number.ll999),
            size = 0.4,
            colour = "grey40") +
  geom_line(data = dfCI,
            aes(x = number.seq,
                y = number.ul999),
            size = 0.4,
            colour = "grey40") +
  geom_hline(data = dfCI,
             aes(yintercept = fit.mean),
             size = 0.4,
             colour = "grey40") +
  coord_cartesian(ylim=c(0,0.05)) +
  annotate("text", x = 1, y = -0.13, label = "95%", size = 3, colour = "grey40") +
  annotate("text", x = 4.5, y = -0.18, label = "99%", size = 3, colour = "grey40") +
  ggtitle("Cumulative Fatality Rate by Cumulative Number of COVID-19 Cases") +
  xlab("Cumulative Number of COVID-19 Cases") +
  ylab("Cumulative Fatality Rate") +
  theme_light() +
  theme(plot.title = element_text(size=12),
        legend.position = c(0.91,0.85),
        legend.title = element_text(size=7),
        legend.text = element_text(size=7),
        legend.background = element_rect(colour = "grey60", linetype = "dotted"),
        legend.key.height = unit(0.3, "cm"))
p

Interactive Funnel Plot: plotly + ggplot2

The funnel plot created using ggplot2 functions can be made interactive with ggplotly() of plotly r package.

fp_ggplotly <- ggplotly(p,
  tooltip = c("label",
              "x",
              "y"))
fp_ggplotly
